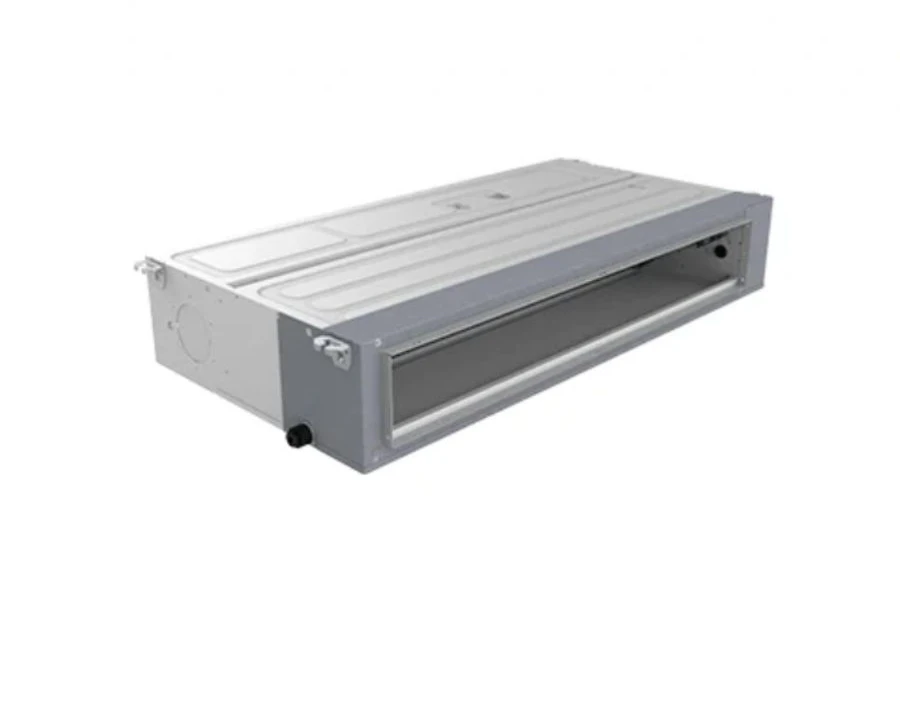

Midea 3 Ton Duct Type Non Inverter AC – MHC36CR
Price: ৳160,000 ৳170,000
Brand: Midea · In stock
Midea 3 Ton Duct Type Non-Inverter AC (MHC-36CRNEUC)
The Midea MHC-36CRNEUC is a 3 Ton duct type non-inverter commercial air conditioner with 36,000 BTU/H cooling capacity. This cooling-only On-Off model features high indoor airflow, a rotary compressor, R410 refrigerant and Remote + Wire controller support. Its duct type configuration is designed for commercial and larger indoor spaces that require a ducted air distribution system.
36,000 BTU/H Cooling Capacity
The MHC-36CRNEUC delivers 36,000 BTU/H cooling capacity. It has a standard current of 8.2 A, standard input of 4000 W, maximum rated current of 11.7 A and maximum rated input of 5350 W. The model has an EER of 3.1 W/W or 9.00 (BTU/Hr)/W and a 3 Star rating.
Duct Type Commercial AC Design
This Midea commercial AC uses a duct type indoor unit. The indoor body measures 1400×700×245 mm, with a 1278×205 mm air suction mouth and a 1213×177 mm air discharge mouth. The duct type configuration allows the indoor unit to work with a suitable ducted air distribution setup.
High Indoor Airflow
Indoor airflow is rated at 2200/1900/1500 m³/h. The supplied indoor noise figures are 57/54/52/49 dB, while the outdoor unit noise level is listed at 59.5 dB.
Rotary Compressor with R410 Refrigerant
The MHC-36CRNEUC uses a rotary compressor, with LAMDA listed as the compressor brand. The system uses R410 refrigerant with a supplied gas amount of 2.4 KG.
Remote + Wire Controller Support
The Midea MHC-36CRNEUC supports both remote and wired control. The listed operating temperature is 16–32°C, and the unit requires a 380–410V, 3-phase, 50Hz power supply.
Key Features of Midea MHC-36CRNEUC
Who Should Choose the Midea MHC-36CRNEUC?
Official Warranty
For domestic usage, the supplied warranty information includes a 5 Years Compressor Warranty, 2 Years Spare Parts Warranty and 1 Year Free Service Warranty. Warranty coverage is subject to applicable terms and conditions.
Key features
- 36,000 BTU/H Cooling Capacity with Duct Type Design
- On-Off Cooling Only Operation with 3 Star Rating
- 2200/1900/1500 m³/h Indoor Air Flow
- Rotary Compressor with R410 Refrigerant
- Remote + Wire Controller Support
Specifications
| Brand | Midea |
|---|---|
| Model | — |
| Compressor Warranty | 5 Years |
| Spare Parts Warranty | 2 Years |
| Free Service Warranty | 1 Year |
| Basic Information — Indoor Model | MHC-36CRNEUC |
| Basic Information — Outdoor Model | MHC-36CRNEUC |
| Basic Information — AC Type | Duct Type |
| Basic Information — Technology | On-Off |
| Basic Information — Operation | Cooling Only |
| Basic Information — Power Supply | 380-410V, 3Ph, 50Hz |
| Cooling Performance — Cooling Capacity | 36,000 BTU/H |
| Cooling Performance — Standard Current | 8.2 A |
| Cooling Performance — Standard Input | 4000 W |
| Cooling Performance — Rated Current (Max Current) | 11.7 A |
| Cooling Performance — Rated Input (Max Input) | 5350 W |
| Cooling Performance — EER | 3.1 W/W |
| Cooling Performance — EER (additional) | 9.00 (BTU/Hr)/W |
| Cooling Performance — SEER | N/A |
| Cooling Performance — Star Rating | 3 Star |
| Heating — Heating Capacity | N/A |
| Heating — Standard Current | N/A |
| Heating — Standard Input | N/A |
| Heating — Rated Current (Max Current) | N/A |
| Heating — Rated Input (Max Input) | N/A |
| Heating — EER | N/A |
| Heating — EER (BTU/Hr)/W | N/A |
| Heating — SEER | N/A |
| Heating — Star Rating | N/A |
| Refrigerant & Compressor — Gas Type | R410 |
| Refrigerant & Compressor — Gas Amount | 2.4 KG |
| Refrigerant & Compressor — Compressor Type | Rotary |
| Refrigerant & Compressor — Compressor Brand | LAMDA |
| Refrigerant & Compressor — Suction Pressure | 4.2 Mpa |
| Refrigerant & Compressor — Discharge Pressure | 1.5 Mpa |
| Controller & Operating Details — Controller Type | Remote + Wire |
| Controller & Operating Details — Operation Temperature | 16-32°C |
| Controller & Operating Details — Pipe Size (Liquid Side, Gas Side) | 3/8, 5/8 Inch |
| Controller & Operating Details — Drain Pipe Size | OD25.4 |
| Controller & Operating Details — Air Suction Mouth | 1278×205 mm |
| Controller & Operating Details — Air Discharge Mouth | 1213×177 mm |
| Airflow & Noise — Indoor Air Flow (Hi/Mi/Lo) | 2200/1900/1500 m³/h |
| Airflow & Noise — Indoor Noise Level (Hi/Mi/Lo) | 57/54/52/49 dB |
| Airflow & Noise — Outdoor Noise Level | 59.5 dB |
| Dimensions & Weight — Indoor Net Weight | 39.5 KG |
| Dimensions & Weight — Indoor Gross Weight | 46.5 KG |
| Dimensions & Weight — Indoor Body Size | 1400×700×245 mm |
| Dimensions & Weight — Indoor Packing Size | 1630×830×300 mm |
| Dimensions & Weight — Outdoor Net Weight | 68.2 KG |
| Dimensions & Weight — Outdoor Gross Weight | 78.7 KG |
| Dimensions & Weight — Outdoor Body Size | 980×410×1210 mm |
| Dimensions & Weight — Outdoor Packing Size | 1032×470×1280 mm |
| Warranty (Domestic) — Compressor Warranty | 5 Years |
| Warranty (Domestic) — Spare Parts Warranty | 2 Years |
| Warranty (Domestic) — Free Service Warranty | 1 Year |
| Warranty (Commercial) — Compressor Warranty | 3 Years |
| Warranty (Commercial) — Spare Parts Warranty | 1 Year |
| Warranty (Commercial) — Free Service Warranty | 1 Year |
Frequently Asked Questions (FAQ)
What warranty coverage is listed for —?
Compressor Warranty: 5 Years; Spare Parts Warranty: 2 Years; Free Service Warranty: 1 Year; Compressor Warranty: 3 Years; Spare Parts Warranty: 1 Year. Check the supplied warranty terms for exclusions and service conditions, and retain your invoice; component coverage is not necessarily whole-appliance coverage.
Which exact model will I receive?
—: Model — —. Use this identifier when confirming specifications, accessories or service requirements.
What should I confirm before buying —?
Check the exact model number, required space and electrical rating with the manufacturer or installer. —'s missing specifications should be confirmed before purchase rather than inferred from a similar model.
How should I look after —?
Follow this model's manual for cleaning and permitted maintenance. Disconnect power before permitted cleaning and have electrical or mechanical faults checked by a qualified technician.
