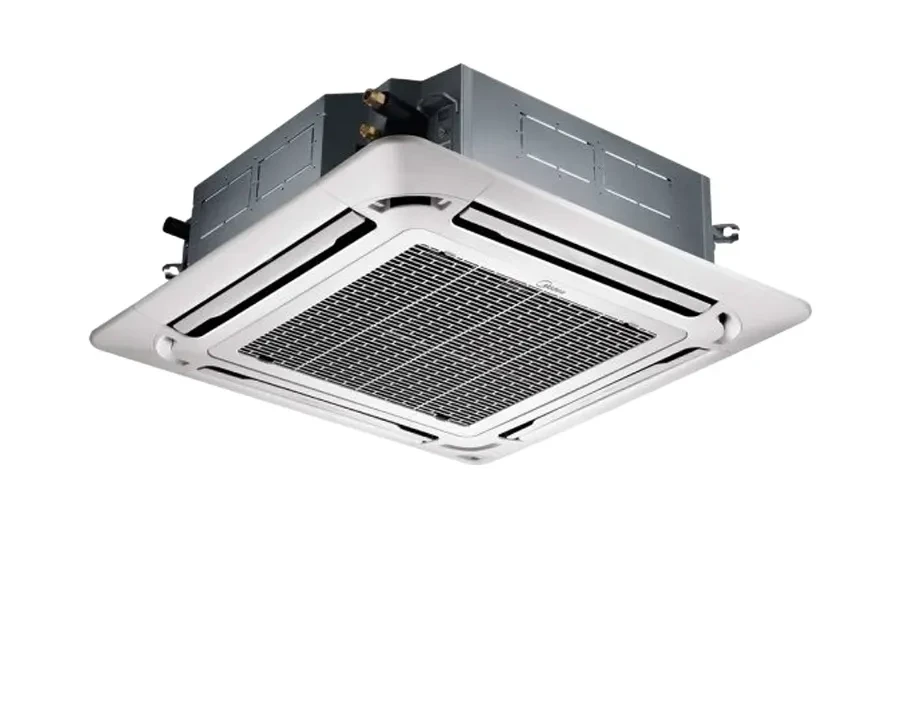

Midea 3 Ton Cassette Type Non Inverter AC (MCA-36CRN1)
Price: ৳120,000 ৳133,480
Brand: Midea · In stock
Midea 3 Ton Cassette Type Non-Inverter AC (MCA-36CRN1)
The Midea MCA-36CRN1 is a 3 Ton cassette type non-inverter commercial air conditioner with 36,000 BTU/H cooling capacity. Designed for compatible commercial installations, this cooling-only model combines cassette-type air distribution with a rotary compressor, R410A refrigerant and remote control. It operates on a 380–415V, 3-phase, 50Hz power supply.
36,000 BTU/H Cooling Capacity
The Midea MCA-36CRN1 delivers 36,000 BTU/H cooling capacity. Its standard cooling input is 4000 W with 8.2 A current, while the maximum input is 5350 W and maximum current is 11.7 A. This makes it a commercial cooling option for spaces where a 3 Ton cassette AC is appropriate.
Cassette Type Commercial AC Design
The cassette-type indoor unit is designed for ceiling installation, helping distribute cooled air from an overhead position while keeping the main indoor unit integrated with the ceiling area. The indoor unit measures approximately 840×840×245 mm, making it suitable for compatible suspended-ceiling installations.
High Indoor Airflow
The MCA-36CRN1 provides multiple airflow levels for commercial cooling. Published specifications for this model family list high-volume indoor airflow suitable for cassette-type operation, allowing users to select airflow according to cooling requirements.
Rotary Compressor and R410A Refrigerant
The Midea MCA-36CRN1 uses a rotary compressor with R410A refrigerant. The non-inverter, cooling-only configuration is designed for straightforward commercial air-conditioning applications where fixed-speed operation is preferred.
Midea MCA-36CRN1 Specifications
Key Features of Midea MCA-36CRN1
Who Should Choose the Midea MCA-36CRN1?
Official Warranty
Key features
- 36,000 BTU/H Cooling Capacity with Cassette Type Design
- Non-Inverter Cooling Operation with 4000W Cooling Input
- 1800/1500/1300 m³/h Indoor Air Flow
- GMCC Rotary Compressor with R410A Refrigerant
- Remote Controller with 380-415V, 3-Phase, 50Hz Power Supply
Specifications
| Brand | Midea |
|---|---|
| Model | MCA-36CRN1 |
| Compressor Warranty | 3 Years |
| Spare Parts Warranty | 1 Year |
| Free Service Warranty | 1 Year |
| Basic Information — Indoor Model | MCA-36CRN1 |
| Basic Information — Outdoor Model | MCA-36CRN1 |
| Basic Information — AC Type | Cassette Type |
| Basic Information — Technology | On-Off / Non-Inverter |
| Basic Information — Operation | Cooling Only |
| Basic Information — Power Supply | 380-415V, 3Ph, 50Hz |
| Cooling Performance — Cooling Capacity | 36,000 BTU/H |
| Cooling Performance — Standard Current | 8.2 A |
| Cooling Performance — Standard Input | 4000 W |
| Cooling Performance — Rated Current (Max Current) | 11.7 A |
| Cooling Performance — Rated Input (Max Input) | 5350 W |
| Cooling Performance — EER | 2.78 W/W |
| Cooling Performance — EER (additional) | 9.98 (BTU/Hr)/W |
| Refrigerant & Compressor — Refrigerant Type | R-410A |
| Refrigerant & Compressor — Compressor Type | Rotary |
| Refrigerant & Compressor — Compressor Brand | GMCC |
| Controller & Operating Details — Controller Type | Remote Controller |
| Controller & Operating Details — Operation Temperature | 17-30°C |
| Airflow & Noise — Indoor Air Flow (Hi/Mi/Lo) | 1800/1500/1300 m³/h |
| Airflow & Noise — Indoor Noise Level (Hi/Mi/Lo) | 53/50/47 dB(A) |
| Airflow & Noise — Outdoor Noise Level | 62.6 dB(A) |
| Dimensions — Indoor Unit Size | 840×840×245 mm |
| Dimensions — Indoor Packing Size | 900×900×265 mm |
| Dimensions — Panel Dimension | 950×55×950 mm |
| Dimensions — Panel Packing Dimension | 1035×90×1035 mm |
| Dimensions — Outdoor Unit Size | 946×410×810 mm |
| Dimensions — Outdoor Packing Size | 1090×500×875 mm |
| Warranty (Commercial) — Compressor Warranty | 3 Years |
| Warranty (Commercial) — Spare Parts Warranty | 1 Year |
| Warranty (Commercial) — Free Service Warranty | 1 Year |
Frequently Asked Questions (FAQ)
Which refrigerant does MCA-36CRN1 need for servicing?
MCA-36CRN1: Refrigerant Type — R-410A. Have a qualified refrigeration technician use the exact specified refrigerant; do not substitute or mix gases.
Will MCA-36CRN1 fit in the space I have?
Listed appliance dimensions: Dimensions — Panel Dimension: 950×55×950 mm. These are not installation clearances. Allow the manual's ventilation and access space, and measure doorways before delivery.
What warranty coverage is listed for MCA-36CRN1?
Compressor Warranty: 3 Years; Spare Parts Warranty: 1 Year; Free Service Warranty: 1 Year. Check the supplied warranty terms for exclusions and service conditions, and retain your invoice; component coverage is not necessarily whole-appliance coverage.
