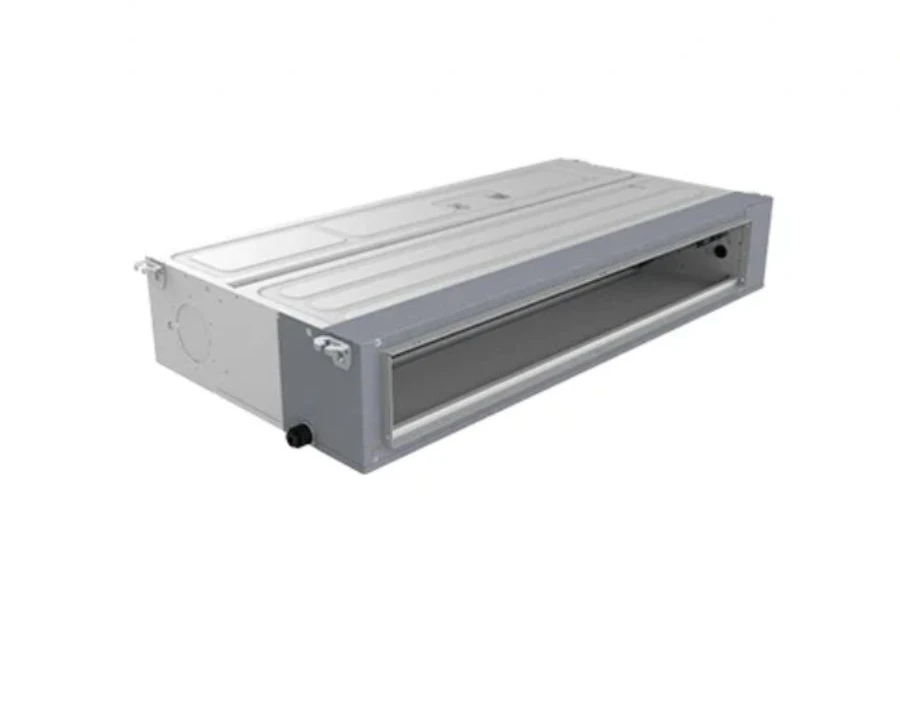

Midea 2 Ton Duct Type Non Inverter AC – MHC24CR
Price: ৳103,000 ৳126,600
Brand: Midea · In stock
The Midea MHC24CR is a 2 Ton duct type non-inverter air conditioner designed for customers who need powerful and concealed cooling for commercial, office and larger indoor applications. With a 24,000 BTU/H cooling capacity, duct type installation and cooling-only operation, this model provides an effective solution where distributed airflow and a clean interior appearance are important. It operates on a 220-240V, single-phase, 50Hz power supply and uses R410 refrigerant.
24,000 BTU/H Cooling Capacity
The Midea MHC24CR delivers a cooling capacity of 24,000 BTU/H, placing it in the 2 Ton AC category. Its standard cooling input is 2,250W with a standard current of 12.7A. The rated maximum input is specified at 3,470W, while the maximum rated current is 15.1A. These specifications make it suitable for customers looking for substantial cooling performance from a duct type air-conditioning system.
Duct Type Air Conditioning System
Unlike a conventional wall-mounted split AC, the Midea MHC24CR uses a duct type indoor unit. The indoor unit can be integrated with an appropriate ducting system to distribute cooled air through designated outlets. This type of installation can be particularly useful for offices, commercial spaces, meeting rooms and other interiors where customers prefer a more integrated air-conditioning arrangement.
Non-Inverter On-Off Operation
The MHC24CR uses conventional On-Off or non-inverter technology. The compressor operates according to the cooling requirement and thermostat control rather than continuously varying its operating speed like an inverter system. For customers specifically looking for a 2 Ton non-inverter duct AC, this model provides a straightforward cooling-only configuration.
3 Star Rating & EER 3.1 W/W
The cooling specification lists an EER of 3.1 W/W, equivalent to 10.67 (BTU/Hr)/W, along with a 3 Star rating. The standard power input is 2,250W. These figures provide useful reference points when comparing the cooling output and electrical input specifications of different duct type air conditioners.
High Airflow for Ducted Cooling
The indoor unit provides three specified airflow levels of 1,300 / 1,250 / 1,150 m³/h for High, Medium and Low operation. This high-volume airflow is an important characteristic of a duct type air-conditioning system, helping distribute conditioned air through a properly designed duct network and air outlets.
R410 Refrigerant
The Midea MHC24CR uses R410 refrigerant, with a specified refrigerant charge of 1.2 kg. The refrigerant piping specification is 3/8 inch on the liquid side and 5/8 inch on the gas side. Correct piping, ducting and installation practices should be followed according to the installation requirements of the air-conditioning system.
Rotary Compressor
The Midea MHC24CR is equipped with a rotary compressor, with the supplied specification listing the compressor brand as GMCC/LAMDA. The compressor forms the core of the cooling system and works with the refrigerant circuit to provide the required 24,000 BTU/H cooling capacity.
Remote & Wired Controller Support
The controller specification includes Remote + Wire operation, providing flexible control options for the duct type AC system. This can be particularly useful in commercial and professional environments where a permanently positioned wired controller may be preferred alongside remote control functionality.
Who Should Choose the Midea MHC24CR?
The Midea MHC24CR may be suitable for customers looking for a 2 Ton duct type cooling solution with straightforward non-inverter operation and strong airflow. Key specifications include:
• 2 Ton duct type air conditioner
• 24,000 BTU/H cooling capacity
• Non-Inverter On-Off technology
• Cooling-only operation
• 2,250W standard cooling input
• EER 3.1 W/W
• 3 Star rating
• R410 refrigerant
• Rotary compressor
• GMCC/LAMDA compressor specification
• Remote + Wire controller support
• 1300 / 1250 / 1150 m³/h indoor airflow
• 220-240V, 1Ph, 50Hz power supply
• Ducted air distribution capability
Indoor Unit Dimensions & Air Outlet Size
The MHC24CR indoor unit measures 890 × 735 × 290 mm and has a net weight of 32.3 kg, while its gross weight is 36.9 kg. The indoor packing dimensions are 1070 × 800 × 360 mm. Its air suction mouth measures 800 × 250 mm, while the air discharge mouth measures 635 × 202 mm. These dimensions should be considered when planning ceiling space, ductwork and installation access.
Outdoor Unit Dimensions
The outdoor unit measures 920 × 360 × 710 mm and has a net weight of 51.6 kg. Its gross weight is 57.2 kg, while the packed dimensions are 985 × 435 × 760 mm. Adequate outdoor installation space and ventilation should be considered when planning the complete AC installation.
Indoor & Outdoor Noise Levels
The indoor unit noise levels are specified at 47 / 44 / 38 dB for High, Medium and Low operation. The outdoor unit noise level is specified at 59 dB. These figures can be used as reference points when evaluating the operating sound specifications of the MHC24CR against other duct type AC models.
Operating Temperature & Pipe Requirements
The specified operating temperature range is 16-32°C. Refrigerant pipe sizes are 3/8 inch for the liquid side and 5/8 inch for the gas side, while the drain pipe specification is OD32. Because this is a duct type air conditioner, appropriate site assessment and professional installation are important for determining duct layout, drainage, piping and indoor and outdoor unit placement.
Compare Midea Duct AC and Commercial AC Options
Midea MHC24CR Warranty in Bangladesh
Key features
- 2 Ton Duct Type AC with 24,000 BTU/H Cooling Capacity
- Non-Inverter On-Off Technology with Cooling-Only Operation
- High Airflow of Up to 1,300 m³/h for Ducted Cooling
- Rotary Compressor with R410 Refrigerant
- Remote + Wired Controller Support with 3 Star Rating
Specifications
| Brand | Midea |
|---|---|
| Model | — |
| Compressor Warranty | 5 Years |
| Spare Parts Warranty | 5 Years Free Service Warranty: 2 Years |
| Model & General Information — Indoor Model | MHC-24CRN1 |
| Model & General Information — Outdoor Model | MHC-24CRN1 |
| Model & General Information — AC Type | Duct Type |
| Model & General Information — Technology | Non-Inverter (On-Off) |
| Model & General Information — Function | Cooling Only |
| Model & General Information — Power Supply | 220-240V, 1Ph, 50Hz |
| Refrigerant — Gas Type | R410 |
| Refrigerant — Gas Amount | 1.2 Kg |
| Cooling Performance — Cooling Capacity | 24,000 BTU/H |
| Cooling Performance — Standard Current | 12.7 A |
| Cooling Performance — Standard Input | 2250 W |
| Cooling Performance — Rated Current (Max Current) | 15.1 A |
| Cooling Performance — Rated Input (Max Input) | 3470 W |
| Cooling Performance — EER | 3.1 W/W |
| Cooling Performance — EER (BTU/Hr)/W | 10.67 |
| Cooling Performance — SEER | N/A |
| Cooling Performance — Star Rating | 3 Star |
| Heating Performance — Heating Capacity | N/A |
| Heating Performance — Standard Current | N/A |
| Heating Performance — Standard Input | N/A |
| Heating Performance — Rated Current (Max Current) | N/A |
| Heating Performance — Rated Input (Max Input) | N/A |
| Heating Performance — EER | N/A |
| Heating Performance — EER (BTU/Hr)/W | N/A |
| Heating Performance — SEER | N/A |
| Heating Performance — Star Rating | N/A |
| Controller — Controller Type | Remote + Wire |
| Indoor Unit — Indoor Net Weight | 32.3 Kg |
| Indoor Unit — Indoor Gross Weight | 36.9 Kg |
| Indoor Unit — Indoor Body Size | 890 × 735 × 290 mm |
| Indoor Unit — Indoor Packing Size | 1070 × 800 × 360 mm |
| Indoor Unit — Air Suction Mouth | 800 × 250 mm |
| Indoor Unit — Air Discharge Mouth | 635 × 202 mm |
| Indoor Unit — Indoor Air Flow (Hi/Mi/Lo) | 1300 / 1250 / 1150 m³/h |
| Indoor Unit — Indoor Noise Level (Hi/Mi/Lo) | 47 / 44 / 38 dB |
| Outdoor Unit — Outdoor Net Weight | 51.6 Kg |
| Outdoor Unit — Outdoor Gross Weight | 57.2 Kg |
| Outdoor Unit — Outdoor Body Size | 920 × 360 × 710 mm |
| Outdoor Unit — Outdoor Packing Size | 985 × 435 × 760 mm |
| Outdoor Unit — Outdoor Noise Level | 59 dB |
| Compressor — Compressor Type | Rotary |
| Compressor — Compressor Brand | GMCC/LAMDA |
| Technical Parameters — Suction Pressure | 4.2 Mpa |
| Technical Parameters — Discharge Pressure | 1.5 Mpa |
| Technical Parameters — Operation Temperature | 16-32°C |
| Technical Parameters — Pipe Size (Liquid Side, Gas Side) | 3/8", 5/8" |
| Technical Parameters — Drain Pipe Size | OD32 |
Frequently Asked Questions (FAQ)
What warranty coverage is listed for —?
Compressor Warranty: 5 Years; Spare Parts Warranty: 5 Years Free Service Warranty: 2 Years. Check the supplied warranty terms for exclusions and service conditions, and retain your invoice; component coverage is not necessarily whole-appliance coverage.
Which exact model will I receive?
—: Model — —. Use this identifier when confirming specifications, accessories or service requirements.
What should I confirm before buying —?
Check the exact model number, required space and electrical rating with the manufacturer or installer. —'s missing specifications should be confirmed before purchase rather than inferred from a similar model.
How should I look after —?
Follow this model's manual for cleaning and permitted maintenance. Disconnect power before permitted cleaning and have electrical or mechanical faults checked by a qualified technician.
