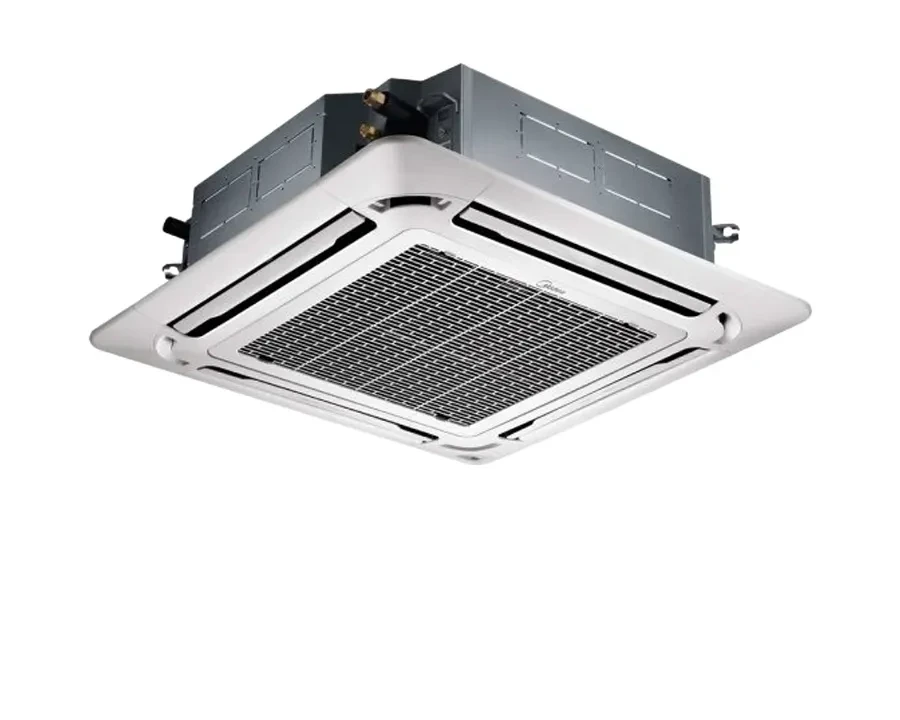

Midea 2 Ton Cassette Type Non Inverter AC (MCA-24CRN1)
Price: ৳87,000 ৳97,000
Brand: Midea · In stock
Midea 2 Ton Cassette Type Non-Inverter AC (MCA-24CRN1)
The Midea MCA-24CRN1 is a 2 Ton cassette type non-inverter commercial air conditioner with 24,000 BTU/H cooling capacity. It is a cooling-only model equipped with a GMCC rotary compressor, R410A refrigerant and remote controller. Its ceiling cassette configuration makes it suitable for commercial spaces where an overhead indoor unit is preferred.
24,000 BTU/H Cooling Performance
The MCA-24CRN1 provides 24,000 BTU/H cooling capacity. Its standard cooling input is 2550 W with a rated current of 12.70 A. Maximum input consumption is 3470 W and maximum current is 15.1 A. The specified EER is 2.84 W/W or 10.18 (BTU/Hr)/W.
Cassette Type Design and Airflow
This non-inverter model uses a cassette-type indoor unit designed for compatible ceiling installation. Indoor airflow is 1400/1200/950 m³/h across high, medium and low settings. The specified indoor noise levels are 43/41/37 dB(A), while the outdoor unit noise level is 58 dB(A).
GMCC Rotary Compressor with R410A
The Midea MCA-24CRN1 uses a GMCC rotary compressor and R410A refrigerant. It operates on a 187–264V, 1-phase, 50Hz power supply and includes a remote controller for operation.
Midea MCA-24CRN1 Specifications
Key Features of Midea MCA-24CRN1
Who Should Choose the Midea MCA-24CRN1?
The MCA-24CRN1 can be considered for compatible commercial installations such as offices, retail spaces, showrooms, restaurants and similar areas where a 2 Ton ceiling cassette cooling system matches the calculated cooling requirement. Final capacity and installation suitability should be determined according to the actual space and cooling load.
Official Warranty
Key features
- 24,000 BTU/H Cooling Capacity with Cassette Type Design
- Non-Inverter Cooling Operation with 2550W Cooling Input
- 1400/1200/950 m³/h Indoor Air Flow
- GMCC Rotary Compressor with R410A Refrigerant
- Remote Controller with 187-264V, 1-Phase, 50Hz Power Supply
Specifications
| Brand | Midea |
|---|---|
| Model | MCA-24CRN1 |
| Compressor Warranty | 3 Years |
| Spare Parts Warranty | 1 Year |
| Free Service Warranty | 1 Year |
| Basic Information — Indoor Model | MCA-24CRN1 |
| Basic Information — Outdoor Model | MCA-24CRN1 |
| Basic Information — AC Type | Cassette Type |
| Basic Information — Technology | On-Off / Non-Inverter |
| Basic Information — Operation | Cooling Only |
| Basic Information — Power Supply | 187-264V, 1Ph, 50Hz |
| Cooling Performance — Cooling Capacity | 24,000 BTU/H |
| Cooling Performance — Standard Current | 12.70 A |
| Cooling Performance — Standard Input | 2550 W |
| Cooling Performance — Rated Current (Max Current) | 15.1 A |
| Cooling Performance — Rated Input (Max Input) | 3470 W |
| Cooling Performance — EER | 2.84 W/W |
| Cooling Performance — EER (additional) | 10.18 (BTU/Hr)/W |
| Refrigerant & Compressor — Refrigerant Type | R410A |
| Refrigerant & Compressor — Compressor Type | Rotary |
| Refrigerant & Compressor — Compressor Brand | GMCC |
| Controller & Operating Details — Controller Type | Remote Controller |
| Controller & Operating Details — Operation Temperature | 17-30°C |
| Airflow & Noise — Indoor Air Flow (Hi/Mi/Lo) | 1400/1200/950 m³/h |
| Airflow & Noise — Indoor Noise Level (Hi/Mi/Lo) | 43/41/37 dB(A) |
| Airflow & Noise — Outdoor Noise Level | 58 dB(A) |
| Dimensions — Indoor Unit Size | 830×230×830 mm |
| Dimensions — Indoor Packing Size | 925×285×925 mm |
| Dimensions — Panel Size | 950×45×950 mm |
| Dimensions — Panel Packing Size | 1035×80×1035 mm |
| Dimensions — Outdoor Unit Size | 845×363×702 mm |
| Dimensions — Outdoor Packing Size | 965×395×765 mm |
| Warranty (Commercial) — Compressor Warranty | 3 Years |
| Warranty (Commercial) — Spare Parts Warranty | 1 Year |
| Warranty (Commercial) — Free Service Warranty | 1 Year |
Frequently Asked Questions (FAQ)
Which refrigerant does MCA-24CRN1 need for servicing?
MCA-24CRN1: Refrigerant Type — R410A. Have a qualified refrigeration technician use the exact specified refrigerant; do not substitute or mix gases.
What warranty coverage is listed for MCA-24CRN1?
Compressor Warranty: 3 Years; Spare Parts Warranty: 1 Year; Free Service Warranty: 1 Year. Check the supplied warranty terms for exclusions and service conditions, and retain your invoice; component coverage is not necessarily whole-appliance coverage.
Which exact model will I receive?
MCA-24CRN1: Model — MCA-24CRN1. Use this identifier when confirming specifications, accessories or service requirements.
What should I confirm before buying MCA-24CRN1?
Check the exact model number, required space and electrical rating with the manufacturer or installer. MCA-24CRN1's missing specifications should be confirmed before purchase rather than inferred from a similar model.
How should I look after MCA-24CRN1?
Follow this model's manual for cleaning and permitted maintenance. Disconnect power before permitted cleaning and have electrical or mechanical faults checked by a qualified technician.
