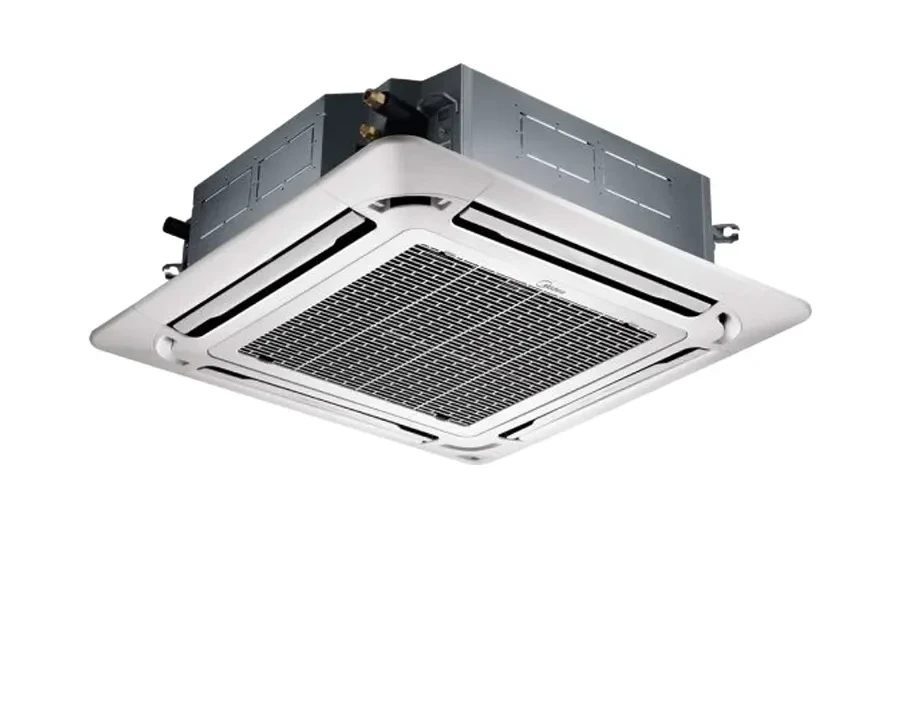

Midea 2.5 Ton Cassette Type Non Inverter AC (MCA-30CRN1)
Price: ৳97,000 ৳109,420
Brand: Midea · In stock
Midea 2.5 Ton Cassette Type Non-Inverter AC (MCA-30CRN1)
The Midea MCA-30CRN1 is a 2.5 Ton cassette type non-inverter commercial air conditioner with 30,000 BTU/H cooling capacity. This cooling-only model combines a ceiling cassette design with a GMCC rotary compressor, R410A refrigerant and remote controller. It operates on a 187–264V, 1-phase, 50Hz power supply.
30,000 BTU/H Cooling Capacity
The MCA-30CRN1 delivers 30,000 BTU/H cooling capacity. Its standard input is 3400 W with 15.80 A standard current. Maximum input is 4900 W and maximum current is 23 A. The specified EER is 2.72 W/W or 9.77 (BTU/Hr)/W.
Cassette Type Commercial AC Design
The cassette-type indoor unit is designed for compatible ceiling installations. The indoor unit measures 830×290×830 mm, while the panel measures 950×45×950 mm. This configuration keeps the main indoor unit integrated with the ceiling area while providing overhead air distribution.
High Indoor Airflow
The Midea MCA-30CRN1 provides indoor airflow of 1700/1500/1400 m³/h across high, medium and low settings. The specified indoor noise levels are 45/43/41 dB(A), while the outdoor unit noise level is 57.5 dB(A).
GMCC Rotary Compressor and R410A Refrigerant
This model uses a GMCC rotary compressor with R410A refrigerant. The non-inverter, cooling-only configuration is designed for commercial air-conditioning applications requiring a 2.5 Ton cassette-type system.
Midea MCA-30CRN1 Specifications
Key Features of Midea MCA-30CRN1
Official Warranty
The confirmed commercial warranty includes 3 Years Compressor Warranty, 1 Year Spare Parts Warranty and 1 Year Free Service Warranty. Warranty coverage is subject to applicable terms and conditions.
Key features
- 30,000 BTU/H Cooling Capacity with Cassette Type Design
- Non-Inverter Cooling Only Operation with 3400W Standard Input
- 1700/1500/1400 m³/h Indoor Air Flow
- GMCC Rotary Compressor with R410A Refrigerant
- Remote Controller with 187-264V, 1-Phase, 50Hz Power Supply
Specifications
| Brand | Midea |
|---|---|
| Model | MCA-30CRN1 |
| Compressor Warranty | 3 Years |
| Spare Parts Warranty | 1 Year |
| Free Service Warranty | 1 Year |
| Basic Information — Indoor Model | MCA-30CRN1 |
| Basic Information — Outdoor Model | MCA-30CRN1 |
| Basic Information — AC Type | Cassette Type |
| Basic Information — Technology | On-Off / Non-Inverter |
| Basic Information — Operation | Cooling Only |
| Basic Information — Power Supply | 187-264V, 1Ph, 50Hz |
| Cooling Performance — Cooling Capacity | 30,000 BTU/H |
| Cooling Performance — Standard Current | 15.80 A |
| Cooling Performance — Standard Input | 3400 W |
| Cooling Performance — Rated Current (Max Current) | 23 A |
| Cooling Performance — Rated Input (Max Input) | 4900 W |
| Cooling Performance — EER | 2.72 W/W |
| Cooling Performance — EER (additional) | 9.77 (BTU/Hr)/W |
| Refrigerant & Compressor — Refrigerant Type | R410A |
| Refrigerant & Compressor — Compressor Type | Rotary |
| Refrigerant & Compressor — Compressor Brand | GMCC |
| Controller & Operating Details — Controller Type | Remote Controller |
| Controller & Operating Details — Operation Temperature | 17-30°C |
| Airflow & Noise — Indoor Air Flow (Hi/Mi/Lo) | 1700/1500/1400 m³/h |
| Airflow & Noise — Indoor Noise Level (Hi/Mi/Lo) | 45/43/41 dB(A) |
| Airflow & Noise — Outdoor Noise Level | 57.5 dB(A) |
| Dimensions — Indoor Unit Size | 830×290×830 mm |
| Dimensions — Panel Size | 950×45×950 mm |
| Dimensions — Outdoor Unit Size | 845×363×702 mm |
| Warranty (Commercial) — Compressor Warranty | 3 Years |
| Warranty (Commercial) — Spare Parts Warranty | 1 Year |
| Warranty (Commercial) — Free Service Warranty | 1 Year |
Frequently Asked Questions (FAQ)
Which refrigerant does MCA-30CRN1 need for servicing?
MCA-30CRN1: Refrigerant Type — R410A. Have a qualified refrigeration technician use the exact specified refrigerant; do not substitute or mix gases.
What warranty coverage is listed for MCA-30CRN1?
Compressor Warranty: 3 Years; Spare Parts Warranty: 1 Year; Free Service Warranty: 1 Year. Check the supplied warranty terms for exclusions and service conditions, and retain your invoice; component coverage is not necessarily whole-appliance coverage.
Which exact model will I receive?
MCA-30CRN1: Model — MCA-30CRN1. Use this identifier when confirming specifications, accessories or service requirements.
What should I confirm before buying MCA-30CRN1?
Check the exact model number, required space and electrical rating with the manufacturer or installer. MCA-30CRN1's missing specifications should be confirmed before purchase rather than inferred from a similar model.
How should I look after MCA-30CRN1?
Follow this model's manual for cleaning and permitted maintenance. Disconnect power before permitted cleaning and have electrical or mechanical faults checked by a qualified technician.
