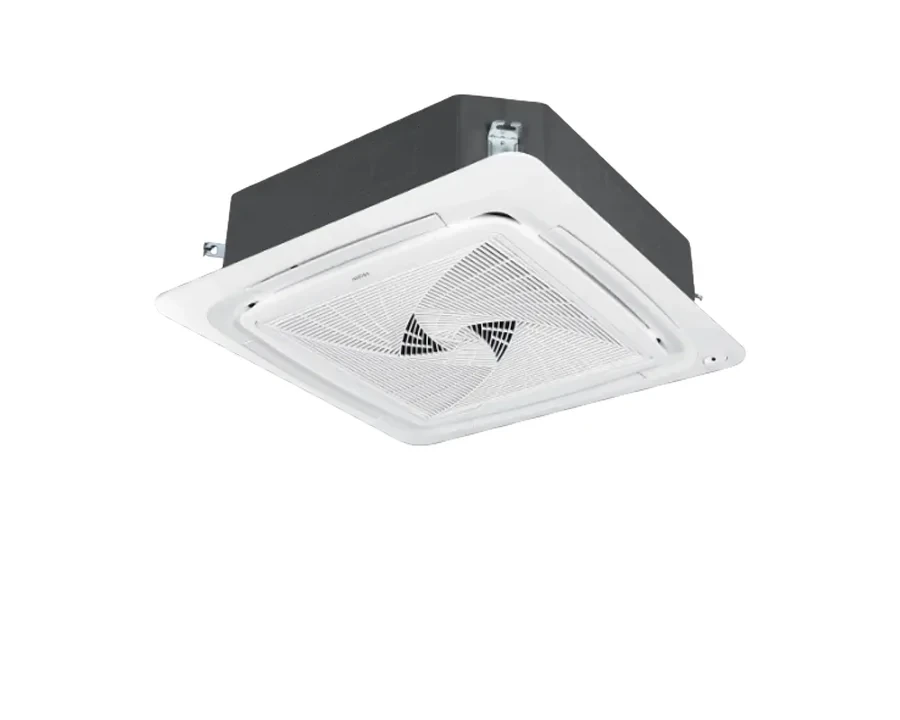

Haier 4 Ton Fixed Speed Cassette Type- LCAC (HSU-48Cassette)Type:(Fix)
Price: ৳201,990
Brand: Haier · In stock
Haier 4 Ton Fixed Speed Cassette Type LCAC (HSU-48Cassette) Type:(Fix)
The Haier HSU-48CassetteType:(Fix) is a 4 Ton fixed speed cassette type LCAC designed for commercial cooling applications. It delivers 48,000 BTU/h cooling capacity and combines R32 refrigerant with high airflow, Round Way Air Supply, Individual Flap Control and High Ceiling Mode.
48,000 BTU/h Commercial Cooling Capacity
With a rated cooling capacity of 48,000 BTU/h , this 4 Ton cassette type LCAC is designed for compatible commercial cooling requirements. The specified cooling power input is 4550W , cooling running current is 7.33A and EER is 3.1 .
High Airflow with Multiple Air Speeds
The indoor unit provides airflow levels of 2170/2010/1730/1450 m³/h . Multiple Air Speed for Ultimate Comfort allows different airflow settings, while Automatic Airflow Control supports convenient air distribution according to operating requirements.
Round Way Air Supply and Individual Flap Control
Round Way Air Supply is designed to distribute conditioned air around the cassette installation area. Individual Flap Control provides additional control over airflow direction, making the unit suitable for commercial spaces where flexible ceiling-level air distribution is required.
High Ceiling Mode and High Lift-up Drain Pump
The HSU-48CassetteType:(Fix) includes High Ceiling Mode and a High Lift-up Drain Pump for suitable cassette installations. It also features a Super Big Inlet Grille, Brand New Designed Fan, convenient filters and an installation-friendly design.
R32 Refrigerant and Three-Phase Power Supply
This Haier commercial cassette AC uses R32 refrigerant with a rotary compressor. Its specified electrical supply is 3/380–415V/50Hz . The unit also includes a DC Fan Motor, Large Heat Exchanger Design, Hidden LED Display and Energy Saving feature.
Key Features of Haier HSU-48CassetteType:(Fix)
Who Should Choose the Haier 4 Ton Cassette Type LCAC?
Haier HSU-48CassetteType:(Fix) Official Warranty
The Haier HSU-48CassetteType:(Fix) comes with 05 Years Compressor Warranty, 02 Years Parts Warranty and 02 Years Service Warranty . Warranty service is subject to applicable terms and conditions. Customers should retain their purchase invoice and warranty documentation.
Key features
- 4 Ton Fixed Speed Cassette Type LCAC with 48,000 BTU/h Cooling Capacity
- R32 Refrigerant with 3.1 EER
- 2170/2010/1730/1450 m³/h Multiple Airflow Speeds
- Round Way Air Supply with Individual Flap Control
- High Ceiling Mode with High Lift-up Drain Pump
Specifications
| Brand | Haier |
|---|---|
| Model | HSU-48Cassette |
| Warranty | 05 Years Compressor Warranty |
| Model Description — HBL Model Name | HSU-48CassetteType:(Fix) |
| Model Description — IDU Code | AB140S1SR1FA |
| Model Description — ODU Code | 1U140S1LP1SB |
| Model Description — Panel Code | PB-950QB |
| Capacity — Cooling (BTU/h) | 48000 |
| Capacity — Heating (BTU/h) | Not Applicable |
| Power Input — Cooling (W) | 4550 |
| Power Input — Heating (W) | Not Applicable |
| Energy Class — EER | 3.1 |
| Running Current — Cooling (A) | 7.33 |
| Running Current — Heating (A) | Not Applicable |
| Power Supply — (Ph, V, Hz) | 3/380~415/50 |
| Air Flow — H/M/L/So (m3/h) | 2170/2010/1730/1450 |
| Moisture Removal Capacity — (10-3m3/h) | 2L/H |
| Refrigerant Type — Refrigerant Type | R32 |
| Refrigerant Pipe — Liquid Side Diameter (mm) | 9.52 |
| Refrigerant Pipe — Gas Side Diameter (mm) | 15.88 |
| Indoor — Net Dimension (mm) W/D/H | 840/840/288 |
| Indoor — Package Dimension (mm) W/D/H | 978/978/353 |
| Indoor — Net Weight (kg) | 27 |
| Indoor — Gross Weight (kg) | 33 |
| Indoor — Sound power Level [dB(A)] Hi/Mid/Lo | 54/51/48/44 |
| Outdoor — Net Dimension (mm) W/D/H | 950/370/1350 |
| Outdoor — Package Dimension (mm) W/D/H | 1050/485/1500 |
| Outdoor — Net Weight (kg) | 91 |
| Outdoor — Gross Weight (kg) | 105 |
| Outdoor — Sound Power Level [dB(A)] Hi/Mid/Lo/So | 60 |
| Outdoor — Compressor Type | Rotary |
| Panel — Model | PB-950QB |
| Panel — External Dimensions (W/D/H) mm | 950/950/50 |
| Panel — Packing Dimensions (W/D/H) mm | 1000/1000/110 |
| Panel — Net Weight (KG) | 5.5 |
| Panel — Gross Weight (KG) | 8.5 |
| Special Features — DC Fan Motor | Yes |
| Special Features — Large Heat Exchanger Design | Yes |
| Special Features — Multiple Air Speed for Ultimate Comfort | Yes |
| Special Features — Hidden LED Display | Yes |
| Special Features — Automatic Airflow Control | Yes |
| Special Features — Installation Friendly | Yes |
| Special Features — Convenient Filters | Yes |
| Special Features — Energy Saving | Yes |
| Special Features — Super Big Inlet Grille | Yes |
| Special Features — Brand New Designed Fan | Yes |
| Special Features — Individual Flap Control | Yes |
| Special Features — High Ceiling Mode | Yes |
| Special Features — Round Way Air Supply | Yes |
| Special Features — High Lift-up Drain Pump | Yes |
| Official Warranty — Compressor Warranty | 05 Years |
| Official Warranty — Parts Warranty | 02 Years |
| Official Warranty — Service Warranty | 02 Years |
Frequently Asked Questions (FAQ)
Which refrigerant does HSU-48Cassette need for servicing?
HSU-48Cassette: Refrigerant Type — R32. Have a qualified refrigeration technician use the exact specified refrigerant; do not substitute or mix gases.
Will HSU-48Cassette fit in the space I have?
Listed appliance dimensions: Indoor — Net Dimension (mm) W/D/H: 840/840/288; Outdoor — Net Dimension (mm) W/D/H: 950/370/1350; Panel — External Dimensions (W/D/H) mm: 950/950/50. These are not installation clearances. Allow the manual's ventilation and access space, and measure doorways before delivery.
What warranty coverage is listed for HSU-48Cassette?
Warranty: 05 Years Compressor Warranty; Compressor Warranty: 05 Years; Parts Warranty: 02 Years; Service Warranty: 02 Years. Check the supplied warranty terms for exclusions and service conditions, and retain your invoice; component coverage is not necessarily whole-appliance coverage.
