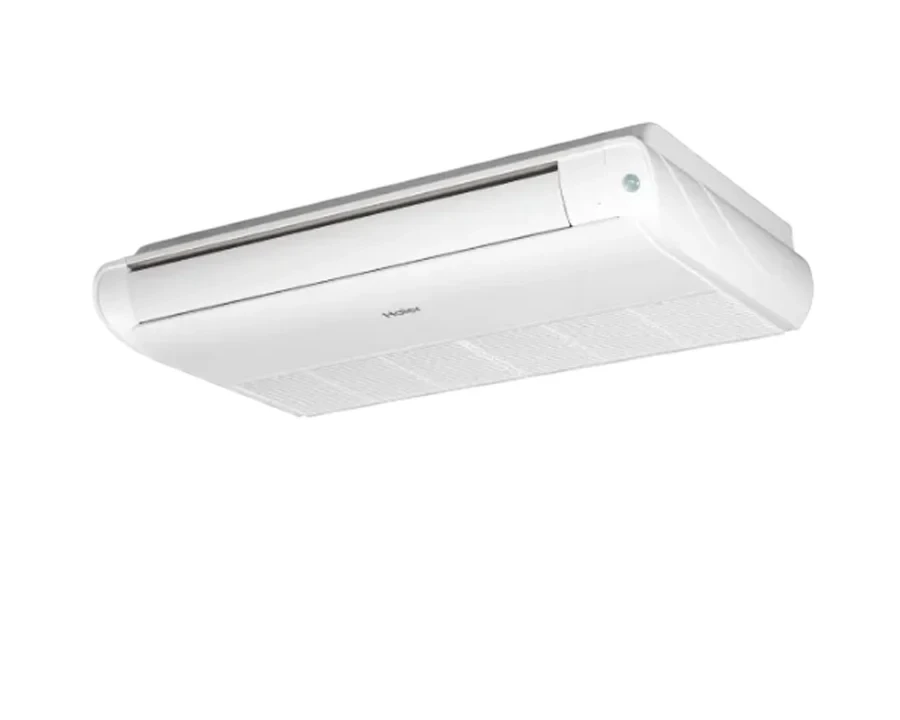

Haier 3 Ton Inverter - Ceiling Type- LCAC (HSU-36CeilingType)(INV)
Price: ৳174,990
Brand: Haier · In stock
Haier 3 Ton Inverter Ceiling Type LCAC (HSU-36CeilingType:(INV))
The Haier HSU-36CeilingType:(INV) is a 3 Ton inverter ceiling type LCAC designed for commercial spaces that require high-capacity cooling and flexible airflow. It delivers 36,000 BTU/h rated cooling capacity with an operating range of 17,100–38,200 BTU/h, uses R32 refrigerant and features a rotary compressor, multiple air speeds and automatic airflow control.
36,000 BTU/h Inverter Cooling Capacity
With a rated cooling capacity of 36,000 BTU/h and a specified range of 17,100–38,200 BTU/h , this Haier ceiling type LCAC is designed for demanding commercial cooling applications. The inverter system adjusts operation according to cooling demand, while the specified cooling power input is 3150W and EER is 3.36.
Multiple Air Speeds and High Airflow
The unit provides multiple airflow levels of 1600/1400/1280/1160 m³/h for High, Medium, Low and Super Low operation. Automatic airflow control and multiple air-speed settings help users adjust air distribution according to the requirements of the commercial space.
R32 Refrigerant and Rotary Compressor
The HSU-36CeilingType:(INV) uses R32 refrigerant and a rotary compressor. Its three-phase power requirement is 3/380–415V/50Hz , making the electrical requirements an important consideration when planning installation in a commercial property.
Self-Cleaning and Antibacterial Filters
Haier includes Self-Cleaning Technology and Antibacterial Filters in this model. Other supplied features include a hidden LED display, convenient filters, automatic airflow control, DC fan motor, installation-friendly design and an easy-to-wire and maintain PCB.
Key Features of Haier HSU-36CeilingType:(INV)
Who Should Choose the Haier 3 Ton Ceiling Type LCAC?
Haier HSU-36CeilingType:(INV) Official Warranty
This Haier commercial AC comes with 12 Years Compressor Warranty, 05 Years Parts Warranty and 02 Years Service Warranty . Warranty service is subject to the applicable terms and conditions. Customers should retain the purchase invoice and warranty documentation.
Key features
- 3 Ton Inverter Ceiling Type LCAC with 36,000 BTU/h Cooling Capacity
- R32 Refrigerant with 3.36 EER
- 1600/1400/1280/1160 m³/h Multiple Airflow Speeds
- Self-Cleaning Technology with Antibacterial Filters
- DC Fan Motor with Automatic Airflow Control
Specifications
| Brand | Haier |
|---|---|
| Model | HSU-36CeilingType |
| Warranty | 12 Years Compressor Warranty |
| Model Description — HBL Model Name | HSU-36CeilingType:(INV) |
| Model Description — IDU Code | AC105S2SH1FA |
| Model Description — ODU Code | 1U105S1PS2SB |
| Model Description — Panel Code | Not Applicable |
| Capacity — Cooling (BTU/h) | 36000 (17100~38200) |
| Capacity — Heating (BTU/h) | Not Applicable |
| Power Input — Cooling (W) | 3150 |
| Power Input — Heating (W) | Not Applicable |
| Energy Class — EER | 3.36 |
| Running Current — Cooling (A) | 5.2 |
| Running Current — Heating (A) | Not Applicable |
| Power Supply — (Ph, V, Hz) | 3/380~415/50 |
| Air Flow — H/M/L/So (m3/h) | 1600/1400/1280/1160 |
| Moisture Removal Capacity — (10-3m3/h) | 2L/H |
| Refrigerant Type — Refrigerant Type | R32 |
| Refrigerant Pipe — Liquid Side Diameter (mm) | 9.52 |
| Refrigerant Pipe — Gas Side Diameter (mm) | 15.88 |
| Indoor — Net Dimension (mm) W/D/H | 1325/230/680 |
| Indoor — Package Dimension (mm) W/D/H | 1425/305/779 |
| Indoor — Net Weight (kg) | 33.5 |
| Indoor — Gross Weight (kg) | 41.9 |
| Indoor — Sound power Level [dB(A)] Hi/Mid/Lo | 47/43/41/37 |
| Outdoor — Net Dimension (mm) W/D/H | 920/372/760 |
| Outdoor — Package Dimension (mm) W/D/H | 1085/487/843 |
| Outdoor — Net Weight (kg) | 60 |
| Outdoor — Gross Weight (kg) | 65 |
| Outdoor — Sound Power Level [dB(A)] Hi/Mid/Lo/So | 56 |
| Outdoor — Compressor Type | Rotary |
| Special Features — Self-Cleanling Technology | Yes |
| Special Features — Antibacterial Filters | Yes |
| Special Features — Multiple Air Speed for Ultimate Comfort | Yes |
| Special Features — Hidden LED Display | Yes |
| Special Features — Automatic Airflow Control | Yes |
| Special Features — Installation Friendly | Yes |
| Special Features — Convenient Filters | Yes |
| Special Features — Energy Saving | Yes |
| Special Features — DC Fan Motor | Yes |
| Special Features — Easy to Wire and Maintain PCB | Yes |
| Official Warranty — Compressor Warranty | 12 Years |
| Official Warranty — Parts Warranty | 05 Years |
| Official Warranty — Service Warranty | 02 Years |
Frequently Asked Questions (FAQ)
Which refrigerant does HSU-36CeilingType need for servicing?
HSU-36CeilingType: Refrigerant Type — R32. Have a qualified refrigeration technician use the exact specified refrigerant; do not substitute or mix gases.
Will HSU-36CeilingType fit in the space I have?
Listed appliance dimensions: Indoor — Net Dimension (mm) W/D/H: 1325/230/680; Outdoor — Net Dimension (mm) W/D/H: 920/372/760. These are not installation clearances. Allow the manual's ventilation and access space, and measure doorways before delivery.
What warranty coverage is listed for HSU-36CeilingType?
Warranty: 12 Years Compressor Warranty; Compressor Warranty: 12 Years; Parts Warranty: 05 Years; Service Warranty: 02 Years. Check the supplied warranty terms for exclusions and service conditions, and retain your invoice; component coverage is not necessarily whole-appliance coverage.
