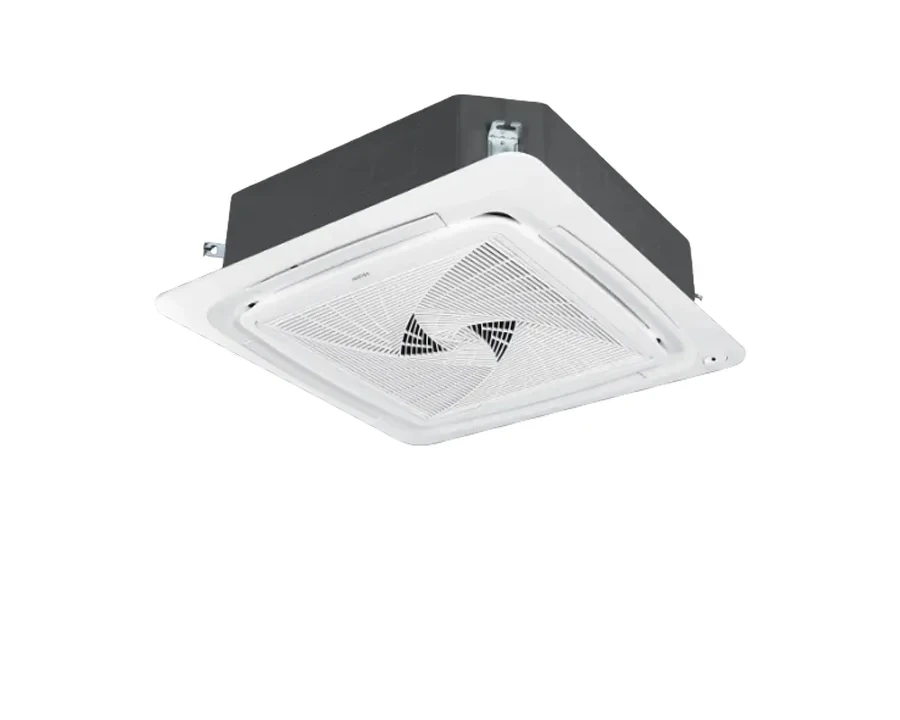

Haier 3 Ton Fixed Speed Cassette Type- LCAC (HSU-36Cassette)Type:(Fix)
Price: ৳161,990
Brand: Haier · In stock
Haier 3 Ton Fixed Speed Cassette Type LCAC (HSU-36CassetteType:(Fix))
The Haier HSU-36CassetteType:(Fix) is a 3 Ton fixed speed cassette type LCAC designed for commercial cooling applications. It delivers 36,000 BTU/h cooling capacity and combines R32 refrigerant with multiple airflow speeds, Round Way Air Supply, Individual Flap Control and High Ceiling Mode.
36,000 BTU/h Cooling Capacity
With a rated cooling capacity of 36,000 BTU/h , this 3 Ton cassette type LCAC is suitable for compatible commercial cooling requirements. The specified cooling power input is 3300W , cooling running current is 5.32A and EER is 3.18 .
Multiple Airflow Speeds and Round Way Air Supply
The indoor unit offers 2080/1780/1580/1400 m³/h airflow levels. Multiple Air Speed for Ultimate Comfort provides different airflow settings, while Round Way Air Supply and Individual Flap Control support flexible air distribution across the installation area.
High Ceiling Mode and High Lift-up Drain Pump
The HSU-36CassetteType:(Fix) includes High Ceiling Mode and a High Lift-up Drain Pump for suitable cassette installations. Other supplied features include a Super Big Inlet Grille, Brand New Designed Fan, convenient filters, Automatic Airflow Control and installation-friendly design.
R32 Refrigerant and Three-Phase Power Supply
This Haier commercial cassette AC uses R32 refrigerant and a rotary compressor. The specified power supply is 3/380–415V/50Hz . The model also includes a DC Fan Motor, Large Heat Exchanger Design, Hidden LED Display and Energy Saving feature.
Key Features of Haier HSU-36CassetteType:(Fix)
Who Should Choose the Haier 3 Ton Cassette Type LCAC?
Haier HSU-36CassetteType:(Fix) Official Warranty
The Haier HSU-36CassetteType:(Fix) comes with 05 Years Compressor Warranty, 02 Years Parts Warranty and 02 Years Service Warranty . Warranty service is subject to applicable terms and conditions. Keep the purchase invoice and warranty documentation for future warranty support.
Key features
- 3 Ton Fixed Speed Cassette Type LCAC with 36,000 BTU/h Cooling Capacity
- R32 Refrigerant with 3.18 EER
- 2080/1780/1580/1400 m³/h Multiple Airflow Speeds
- Round Way Air Supply with Individual Flap Control
- High Ceiling Mode with High Lift-up Drain Pump
Specifications
| Brand | Haier |
|---|---|
| Model | HSU-36Cassette |
| Warranty | 05 Years Compressor Warranty |
| Model Description — HBL Model Name | HSU-36CassetteType:(Fix) |
| Model Description — IDU Code | AB105S1SR1FA |
| Model Description — ODU Code | 1U105S1LN1SB |
| Model Description — Panel Code | PB-950QB |
| Capacity — Cooling (BTU/h) | 36000 |
| Capacity — Heating (BTU/h) | Not Applicable |
| Power Input — Cooling (W) | 3300 |
| Power Input — Heating (W) | Not Applicable |
| Energy Class — EER | 3.18 |
| Running Current — Cooling (A) | 5.32 |
| Running Current — Heating (A) | Not Applicable |
| Power Supply — (Ph, V, Hz) | 3/380~415/50 |
| Air Flow — H/M/L/So (m3/h) | 2080/1780/1580/1400 |
| Moisture Removal Capacity — (10-3m3/h) | 2L/H |
| Refrigerant Type — Refrigerant Type | R32 |
| Refrigerant Pipe — Liquid Side Diameter (mm) | 9.52 |
| Refrigerant Pipe — Gas Side Diameter (mm) | 15.88 |
| Indoor — Net Dimension (mm) W/D/H | 840/840/246 |
| Indoor — Package Dimension (mm) W/D/H | 978/978/312 |
| Indoor — Net Weight (kg) | 25 |
| Indoor — Gross Weight (kg) | 30.5 |
| Indoor — Sound power Level [dB(A)] Hi/Mid/Lo | 53/50/47/43 |
| Outdoor — Net Dimension (mm) W/D/H | 950/370/965 |
| Outdoor — Package Dimension (mm) W/D/H | 1050/485/1095 |
| Outdoor — Net Weight (kg) | 74 |
| Outdoor — Gross Weight (kg) | 85 |
| Outdoor — Sound Power Level [dB(A)] Hi/Mid/Lo/So | 59 |
| Outdoor — Compressor Type | Rotary |
| Panel — Model | PB-950QB |
| Panel — External Dimensions (W/D/H) mm | 950/950/50 |
| Panel — Packing Dimensions (W/D/H) mm | 1000/1000/110 |
| Panel — Net Weight (KG) | 5.5 |
| Panel — Gross Weight (KG) | 8.5 |
| Special Features — DC Fan Motor | Yes |
| Special Features — Large Heat Exchanger Design | Yes |
| Special Features — Multiple Air Speed for Ultimate Comfort | Yes |
| Special Features — Hidden LED Display | Yes |
| Special Features — Automatic Airflow Control | Yes |
| Special Features — Installation Friendly | Yes |
| Special Features — Convenient Filters | Yes |
| Special Features — Energy Saving | Yes |
| Special Features — Super Big Inlet Grille | Yes |
| Special Features — Brand New Designed Fan | Yes |
| Special Features — Individual Flap Control | Yes |
| Special Features — High Ceiling Mode | Yes |
| Special Features — Round Way Air Supply | Yes |
| Special Features — High Lift-up Drain Pump | Yes |
| Official Warranty — Compressor Warranty | 05 Years |
| Official Warranty — Parts Warranty | 02 Years |
| Official Warranty — Service Warranty | 02 Years |
Frequently Asked Questions (FAQ)
Which refrigerant does HSU-36Cassette need for servicing?
HSU-36Cassette: Refrigerant Type — R32. Have a qualified refrigeration technician use the exact specified refrigerant; do not substitute or mix gases.
Will HSU-36Cassette fit in the space I have?
Listed appliance dimensions: Indoor — Net Dimension (mm) W/D/H: 840/840/246; Outdoor — Net Dimension (mm) W/D/H: 950/370/965; Panel — External Dimensions (W/D/H) mm: 950/950/50. These are not installation clearances. Allow the manual's ventilation and access space, and measure doorways before delivery.
What warranty coverage is listed for HSU-36Cassette?
Warranty: 05 Years Compressor Warranty; Compressor Warranty: 05 Years; Parts Warranty: 02 Years; Service Warranty: 02 Years. Check the supplied warranty terms for exclusions and service conditions, and retain your invoice; component coverage is not necessarily whole-appliance coverage.
