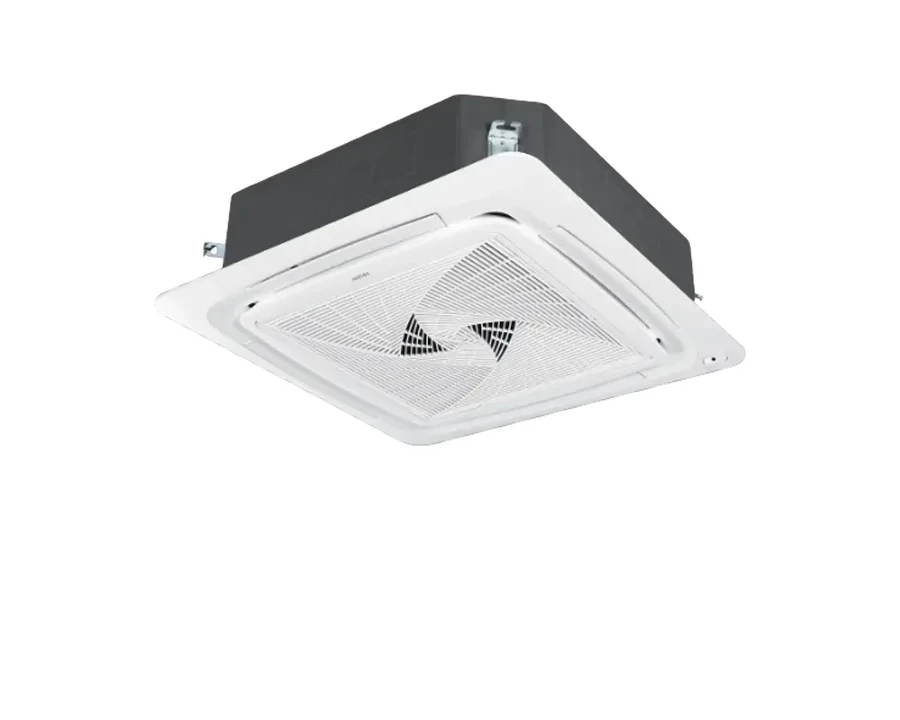

Haier 2.5 Ton Fixed Speed Cassette Type LCAC (HSU-30CassetteType)(Fix)
Price: ৳135,990
Brand: Haier · In stock
Haier 2.5 Ton Fixed Speed Cassette Type LCAC (HSU-30CassetteType:(Fix))
The Haier HSU-30CassetteType:(Fix) is a 2.5 Ton fixed speed cassette type LCAC designed for commercial cooling applications. It delivers 30,000 BTU/h cooling capacity , uses R32 refrigerant and combines multiple airflow speeds with Round Way Air Supply, Individual Flap Control and High Ceiling Mode for flexible air distribution.
30,000 BTU/h Commercial Cooling
With a rated cooling capacity of 30,000 BTU/h , the HSU-30CassetteType:(Fix) provides 2.5 Ton-class cooling for suitable commercial environments. The specified cooling power input is 2460W , running current is 10.8A and EER is 3.66 .
Multiple Air Speeds and Round Way Air Supply
The indoor unit provides airflow levels of 1800/1640/1400/1095 m³/h . Round Way Air Supply and Individual Flap Control help distribute conditioned air around the installation area, while Multiple Air Speed control allows airflow to be adjusted according to operating requirements.
High Ceiling Mode and Drain Pump
The HSU-30CassetteType:(Fix) includes High Ceiling Mode and a High Lift-up Drain Pump , supporting cassette installation requirements in suitable commercial spaces. It also features a Super Big Inlet Grille, convenient filters, installation-friendly design and an easy-to-maintain configuration.
R32 Refrigerant and Rotary Compressor
This Haier cassette LCAC uses R32 refrigerant with a rotary compressor. Its specified power supply is 1/220–240V/50Hz , making it a single-phase commercial AC model. Installation should follow the required electrical, refrigerant piping and drainage specifications.
Key Features of Haier HSU-30CassetteType:(Fix)
Who Should Choose the Haier 2.5 Ton Cassette Type LCAC?
Haier HSU-30CassetteType:(Fix) Official Warranty
The Haier HSU-30CassetteType:(Fix) comes with 05 Years Compressor Warranty, 02 Years Parts Warranty and 02 Years Service Warranty . Warranty service is subject to applicable terms and conditions. Customers should retain their purchase invoice and warranty documentation.
Key features
- 2.5 Ton Fixed Speed Cassette Type LCAC with 30,000 BTU/h Cooling Capacity
- R32 Refrigerant with 3.66 EER
- 1800/1640/1400/1095 m³/h Multiple Airflow Speeds
- Round Way Air Supply with Individual Flap Control
- High Ceiling Mode with High Lift-up Drain Pump
Specifications
| Brand | Haier |
|---|---|
| Model | HSU-30CassetteType |
| Warranty | 05 Years Compressor Warranty |
| Model Description — HBL Model Name | HSU-30CassetteType:(Fix) |
| Model Description — IDU Code | AB90S1SR1FA |
| Model Description — ODU Code | 1U90S1LT1SA |
| Model Description — Panel Code | PB-950QB |
| Capacity — Cooling (BTU/h) | 30000 |
| Capacity — Heating (BTU/h) | Not Applicable |
| Power Input — Cooling (W) | 2460 |
| Power Input — Heating (W) | Not Applicable |
| Energy Class — EER | 3.66 |
| Running Current — Cooling (A) | 10.8 |
| Running Current — Heating (A) | Not Applicable |
| Power Supply — (Ph, V, Hz) | 1/220-240/50 |
| Air Flow — H/M/L/So (m3/h) | 1800/1640/1400/1095 |
| Moisture Removal Capacity — (10-3m3/h) | / |
| Refrigerant Type — Refrigerant Type | R32 |
| Refrigerant Pipe — Liquid Side Diameter (mm) | 9.52 |
| Refrigerant Pipe — Gas Side Diameter (mm) | 15.88 |
| Indoor — Net Dimension (mm) W/D/H | 840/840/246 |
| Indoor — Package Dimension (mm) W/D/H | 978/978/312 |
| Indoor — Net Weight (kg) | 24 |
| Indoor — Gross Weight (kg) | 31 |
| Indoor — Sound power Level [dB(A)] Hi/Mid/Lo | 52/49/46/42 |
| Outdoor — Net Dimension (mm) W/D/H | 920/372/765 |
| Outdoor — Package Dimension (mm) W/D/H | 1085/487/843 |
| Outdoor — Net Weight (kg) | 63.5 |
| Outdoor — Gross Weight (kg) | 67 |
| Outdoor — Sound Power Level [dB(A)] Hi/Mid/Lo/So | 55 |
| Outdoor — Compressor Type | Rotary |
| Panel — Model | PB-950QB |
| Panel — External Dimensions (W/D/H) mm | 950/950/50 |
| Panel — Packing Dimensions (W/D/H) mm | 1000/1000/110 |
| Panel — Net Weight (KG) | 5.5 |
| Panel — Gross Weight (KG) | 8.5 |
| Special Features — DC Fan Motor | Yes |
| Special Features — Large Heat Exchanger Design | Yes |
| Special Features — Multiple Air Speed for Ultimate Comfort | Yes |
| Special Features — Hidden LED Display | Yes |
| Special Features — Automatic Airflow Control | Yes |
| Special Features — Installation Friendly | Yes |
| Special Features — Convenient Filters | Yes |
| Special Features — Energy Saving | Yes |
| Special Features — Super Big Inlet Grille | Yes |
| Special Features — Brand New Designed Fan | Yes |
| Special Features — Individual Flap Control | Yes |
| Special Features — High Ceiling Mode | Yes |
| Special Features — Round Way Air Supply | Yes |
| Special Features — High Lift-up Drain Pump | Yes |
| Official Warranty — Compressor Warranty | 05 Years |
| Official Warranty — Parts Warranty | 02 Years |
| Official Warranty — Service Warranty | 02 Years |
Frequently Asked Questions (FAQ)
Which refrigerant does HSU-30CassetteType need for servicing?
HSU-30CassetteType: Refrigerant Type — R32. Have a qualified refrigeration technician use the exact specified refrigerant; do not substitute or mix gases.
Will HSU-30CassetteType fit in the space I have?
Listed appliance dimensions: Indoor — Net Dimension (mm) W/D/H: 840/840/246; Outdoor — Net Dimension (mm) W/D/H: 920/372/765; Panel — External Dimensions (W/D/H) mm: 950/950/50. These are not installation clearances. Allow the manual's ventilation and access space, and measure doorways before delivery.
What warranty coverage is listed for HSU-30CassetteType?
Warranty: 05 Years Compressor Warranty; Compressor Warranty: 05 Years; Parts Warranty: 02 Years; Service Warranty: 02 Years. Check the supplied warranty terms for exclusions and service conditions, and retain your invoice; component coverage is not necessarily whole-appliance coverage.
