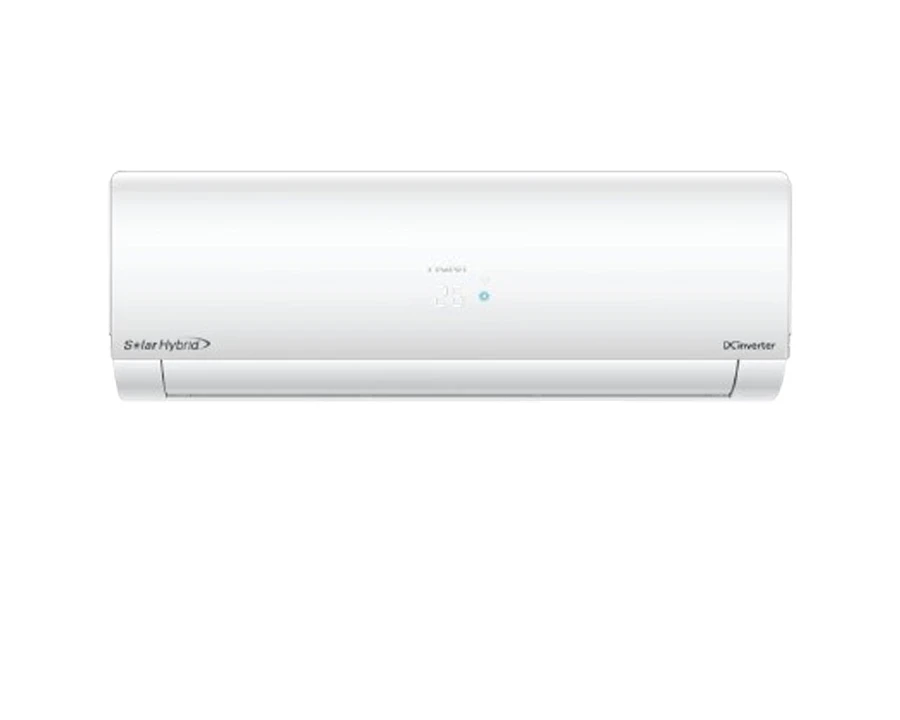

Haier 1.6 Ton Solar Hybrid Inverter AC (HSU-19SolarCool) (INV)(Wifi)(FA)
Price: ৳137,000 ৳155,000
Brand: Haier · In stock
Haier 1.6 Ton Solar Hybrid Inverter AC HSU-19SolarCool
The Haier HSU-19SolarCool is a 1.6 Ton Solar Hybrid Inverter AC with 19,000 BTU cooling capacity, designed to combine inverter air conditioning with solar power support. The model features a Solar Hybrid system, Frost Self-Clean, Eco Mode, Turbo Function, Quiet Mode, Sleep Mode and R32 refrigerant. Its solar panel specification supports four 550W panels, while the AC uses a rotary compressor and Golden Fin heat exchangers.
19,000 BTU Cooling Capacity
The HSU-19SolarCool provides 19,000 BTU/h cooling capacity with a rated cooling capacity of 5,570W. Rated cooling power input is 1,330W, while maximum cooling power input is 1,900W. The rated cooling current is 5.8A and the maximum cooling current is 8.3A. Its Energy Efficiency Ratio (EER) is specified at 3.9.
Solar Hybrid Inverter Technology
A major distinction of the Haier HSU-19SolarCool is its Solar Hybrid configuration. The supplied technical specification lists a solar panel requirement of 550W per panel with a quantity of four. This makes the model particularly relevant for customers considering an inverter AC designed to work with solar power support alongside its conventional AC operating system.
4 × 550W Solar Panel Specification
The solar panel specification for the HSU-19SolarCool is 550W with a quantity of four panels. Battery connectivity is listed as No, so customers planning a solar installation should consider the specified system configuration and installation requirements before purchase. The solar panel specification also lists a 12-year warranty.
Frost Self-Clean Technology
Frost Self-Clean is included among the HSU-19SolarCool user functions. This built-in function provides a convenient cleaning feature for the indoor cooling system and can complement routine professional AC servicing and maintenance.
Eco Mode, Turbo & Quiet Mode
The Haier SolarCool includes Eco Mode for an additional energy-conscious operating option. Turbo Function is available when stronger cooling operation is preferred, while Quiet Mode provides an alternative for situations where reduced operating noise is desirable. Sleep Mode, Timer and Child Lock add further convenience for everyday use.
R32 Refrigerant & Golden Fin Heat Exchangers
The HSU-19SolarCool uses R32 refrigerant with a stated standard refrigerant amount of 0.850 kg. It uses a rotary compressor, a 7mm 2 Row evaporator/condenser specification and Golden Fin heat exchangers. The refrigerant pipe diameter is 6 mm on the liquid side and 12 mm on the gas side.
900 m³/h Air Circulation & Swing Control
Air circulation is rated at 900 m³/h, while moisture removal capacity is specified at 2 L/h. Up & Down Swing supports automatic operation, while Left & Right Swing is manual. These airflow controls allow users to adjust the direction of cooled air according to room requirements.
Who Should Choose the Haier HSU-19SolarCool?
The Haier HSU-19SolarCool may be suitable for customers looking for a higher-capacity inverter AC with solar support and a broad set of everyday cooling functions, including:
• 1.6 Ton inverter cooling
• 19,000 BTU cooling capacity
• Solar Hybrid system
• 4 × 550W solar panel specification
• Frost Self-Clean
• Eco Mode
• Turbo Function
• Dry Function
• Auto Restart Function
• Sleep Mode
• Quiet Mode
• Timer
• Child Lock
• R32 refrigerant
• Quick & Easy Installation
Auto Restart, Dry Function & Everyday Convenience
Auto Restart Function allows the AC to resume operation following a power interruption. Dry Function provides another operating option for managing indoor comfort, while the Timer allows scheduled operation. Quick & Easy Installation and Child Lock are also included in the listed user functions.
Compare Haier AC and Other Air Conditioner Options
Indoor & Outdoor Unit Dimensions
The indoor unit measures 1009 x 223 x 327 mm (W x D x H), with a net weight of 14.5 kg and gross weight of 17.5 kg. The outdoor unit measures 800 x 280 x 553 mm and has a product weight of 35.5 kg and gross weight of 38.5 kg. Customers should consider the dimensions and installation requirements of both units before purchase.
Indoor & Outdoor Noise Levels
The indoor noise levels are specified at 49/46/42 dB(A) for High/Mid/Low operation. The outdoor noise level is specified at 55 dB(A). These figures provide useful reference points when comparing the operating sound specifications of different air conditioners.
Haier HSU-19SolarCool Warranty in Bangladesh
The Haier HSU-19SolarCool comes with official warranty support in Bangladesh. Please refer to the warranty information provided above for the applicable compressor, spare parts and free service coverage. The solar panel specification also carries its separately stated warranty. Keep your purchase invoice and warranty documentation for future service requirements.
Key features
- 1.6 Ton Solar Hybrid Inverter AC with 19,000 BTU Cooling Capacity
- Solar Hybrid System with 4 × 550W Solar Panel Specification
- Frost Self-Clean Technology for Convenient Maintenance
- Eco Mode with Turbo, Quiet and Sleep Functions
- R32 Refrigerant with Golden Fin Heat Exchangers
Specifications
| Brand | Haier |
|---|---|
| Model | HSU-19SolarCool |
| Compressor Warranty | 12 Years |
| Spare Parts Warranty | 5 Years |
| Free Service Warranty | 5 Years |
| Model Name — Indoor | HSU-19SolarCool(INV)(Wifi)(FA):FA/IDU |
| Model Name — Outdoor | HSU-19K(INV)-Solar:ODU |
| Model Name — Category | Inverter |
| Model Name — Series | Inverter |
| Model Name — Capacity(BTU) | 19000 |
| Capacity & Parameters — Type | Inverter |
| Capacity & Parameters — Ton Range (TR) | 1.6 |
| Capacity & Parameters — Capacity (BTU/h) | 19000 |
| Capacity & Parameters — Rated Cooling Capacity (W) | 5570 |
| Capacity & Parameters — Rated Heating Capacity (W) | N/A |
| Capacity & Parameters — Rated Power Input Cooling (W) | 1330 |
| Capacity & Parameters — Rated Power Input Heating (W) | N/A |
| Capacity & Parameters — Max. Power input Cooling (W) | 1900 |
| Capacity & Parameters — Max. Power input Heating (W) | N/A |
| Capacity & Parameters — Energy Effeciency Ratio (EER) | 3.9 |
| Capacity & Parameters — Seasonal Energy Effeciency Ratio (SEER) | N/A |
| Capacity & Parameters — Coefficient of Performance (COP) | N/A |
| Capacity & Parameters — Rated Running Current (A) Cooling | 5.8 |
| Capacity & Parameters — Rated Running Current (A) Heating | N/A |
| Capacity & Parameters — Max.Running Current (A) Cooling | 8.3 |
| Capacity & Parameters — Max.Running Current (A) Heating | N/A |
| Capacity & Parameters — Power Supply (Ph,V,Hz) | 1/230/50HZ |
| Capacity & Parameters — Air Circulation (m3/h) | 900 |
| Capacity & Parameters — Moisture Removal Capacity (L/h) | 2 |
| Capacity & Parameters — Refrigerant Type | R32 |
| Capacity & Parameters — Refrigerant Standard (Kg) | 0.850 |
| Capacity & Parameters — Refrigerant Pipe Liquid Side Diameter (mm) | 6 |
| Capacity & Parameters — Refrigerant Pipe Gas Side Diameter (mm) | 12 |
| Capacity & Parameters — Compressor Type | Rotary |
| Capacity & Parameters — Evaporator/Condenser | 7mm 2 Row |
| Capacity & Parameters — Heat Exchangers | Golden Fin |
| IDU Spec — Indoor Product Dimension (mm) W/D/H | 1009*223*327 |
| IDU Spec — Indoor Package dimension (mm) W/D/H | 1100*313*420 |
| IDU Spec — Indoor Net Weight (kg) | 14.5 |
| IDU Spec — Indoor Gross Weight (kg) | 17.5 |
| IDU Spec — Indoor Noise Level [dB(A)] Hi/Mid/Lo | 49/46/42 |
| ODU Spec — Outdoor Product Dimension (mm) W/D/H | 800*280*553 |
| ODU Spec — Outdoor Package Dimension (mm) W/D/H | 908*405*627 |
| ODU Spec — Outdoor Product Weight (kg) | 35.5 |
| ODU Spec — Outdoor Gross Weight (kg) | 38.5 |
| ODU Spec — Outdoor Noise Level [dB(A)] | 55 |
| User Functions — Up & Down Swing | Auto |
| User Functions — Left & Right Swing | Manual |
| User Functions — Frost Self-Clean | Yes |
| User Functions — Eco Mode | Yes |
| User Functions — Turbo Function | Yes |
| User Functions — Dry Function | Yes |
| User Functions — Auto Restart Function | Yes |
| User Functions — Sleep Mode | Yes |
| User Functions — Quiet Mode | Yes |
| User Functions — Timer | Yes |
| User Functions — Quick & Easy Installation | Yes |
| User Functions — Child Lock | Yes |
| Solar Panel Spec — Watt | 550 |
| Solar Panel Spec — Quantity | 4 |
| Solar Panel Spec — Warranty (Yrs) | 12 |
| Solar Panel Spec — Battery Connectivity | No |
| Product Warranty — Compressor Warranty | 12 Years |
| Product Warranty — Spare Parts Warranty | 5 Years |
| Product Warranty — Free Service Warranty | 5 Years |
Frequently Asked Questions (FAQ)
What AC size am I buying with HSU-19SolarCool?
HSU-19SolarCool: Ton Range (TR) — 1.6.
How much electricity does HSU-19SolarCool use when cooling?
HSU-19SolarCool: Rated Power Input Cooling (W) — 1330. This is the rated input, not a guaranteed constant usage or monthly bill. Actual consumption depends on settings, weather and operating time.
Which refrigerant does HSU-19SolarCool need for servicing?
HSU-19SolarCool: Refrigerant Type — R32. Have a qualified refrigeration technician use the exact specified refrigerant; do not substitute or mix gases.
Will HSU-19SolarCool fit in the space I have?
Listed appliance dimensions: IDU Spec — Indoor Product Dimension (mm) W/D/H: 1009*223*327; ODU Spec — Outdoor Product Dimension (mm) W/D/H: 800*280*553. These are not installation clearances. Allow the manual's ventilation and access space, and measure doorways before delivery.
What warranty coverage is listed for HSU-19SolarCool?
Compressor Warranty: 12 Years; Spare Parts Warranty: 5 Years; Free Service Warranty: 5 Years; Warranty (Yrs): 12. Check the supplied warranty terms for exclusions and service conditions, and retain your invoice; component coverage is not necessarily whole-appliance coverage.
